PEDAX Combiline G 2024033

 Description

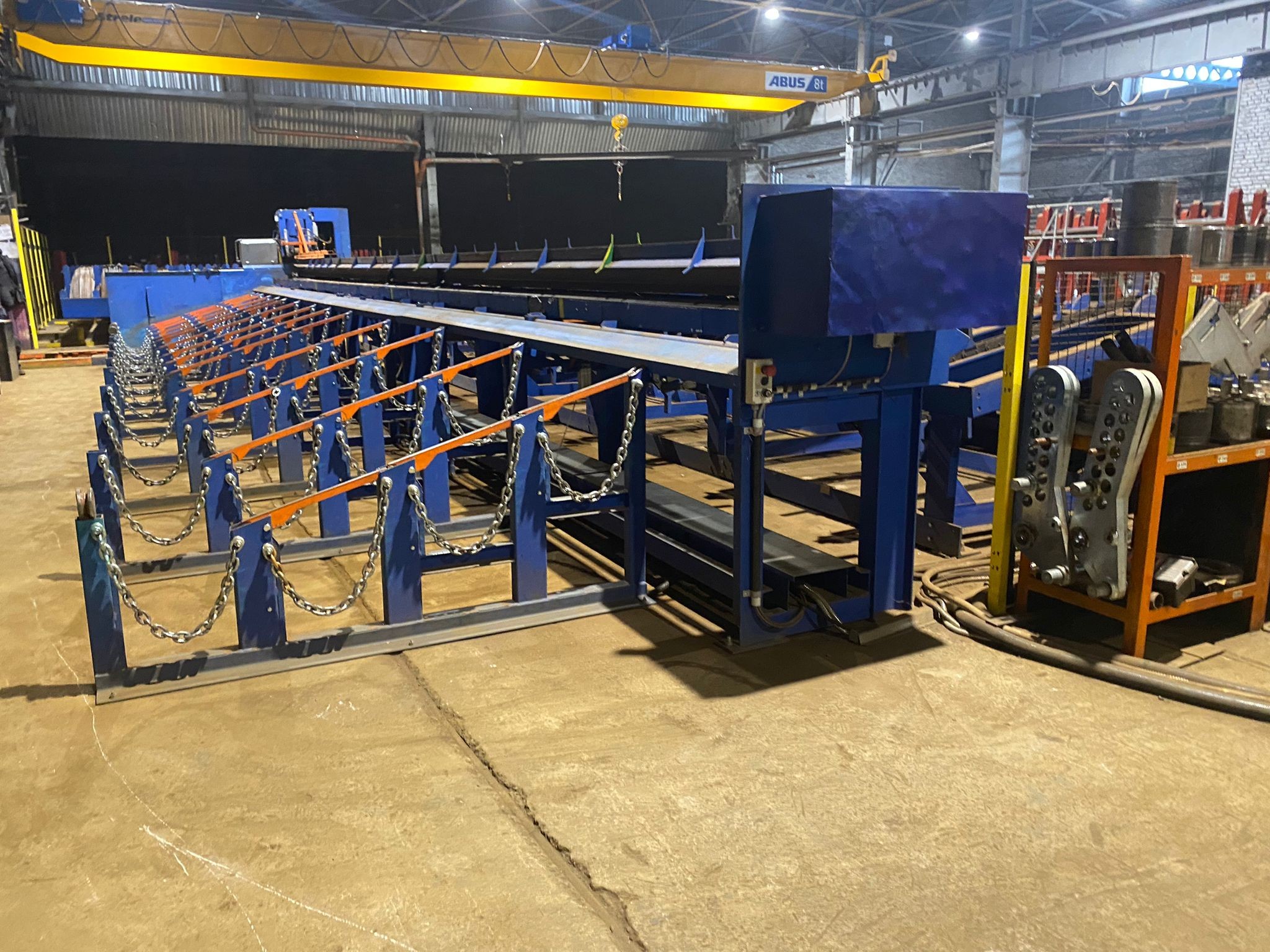

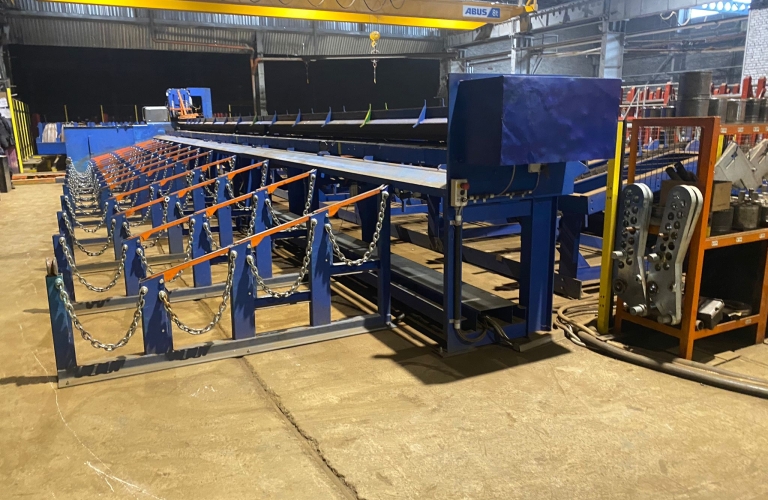

The shearing and bending line Combiline is designed for a performance of up to 40 t per shift. The system makes it very simple to adapt to the existing site conditions and the required material flow. Combiline consists of : a shearline system with turnable channel for discharging the bars immediately after the cutting stroke to the left or to the right, equipped withpull-in feed and measuring system with no fixed stops, a hydraulic shear and a positioning track for fixed lengths.,Permatic double bending lines decisively streamline the bending of reinforcing steel from bars.
 Technical Specifications

Brand:

PEDAX

Machine Type:

,Double bender

Single Wire Size:

45

  • Machine info:

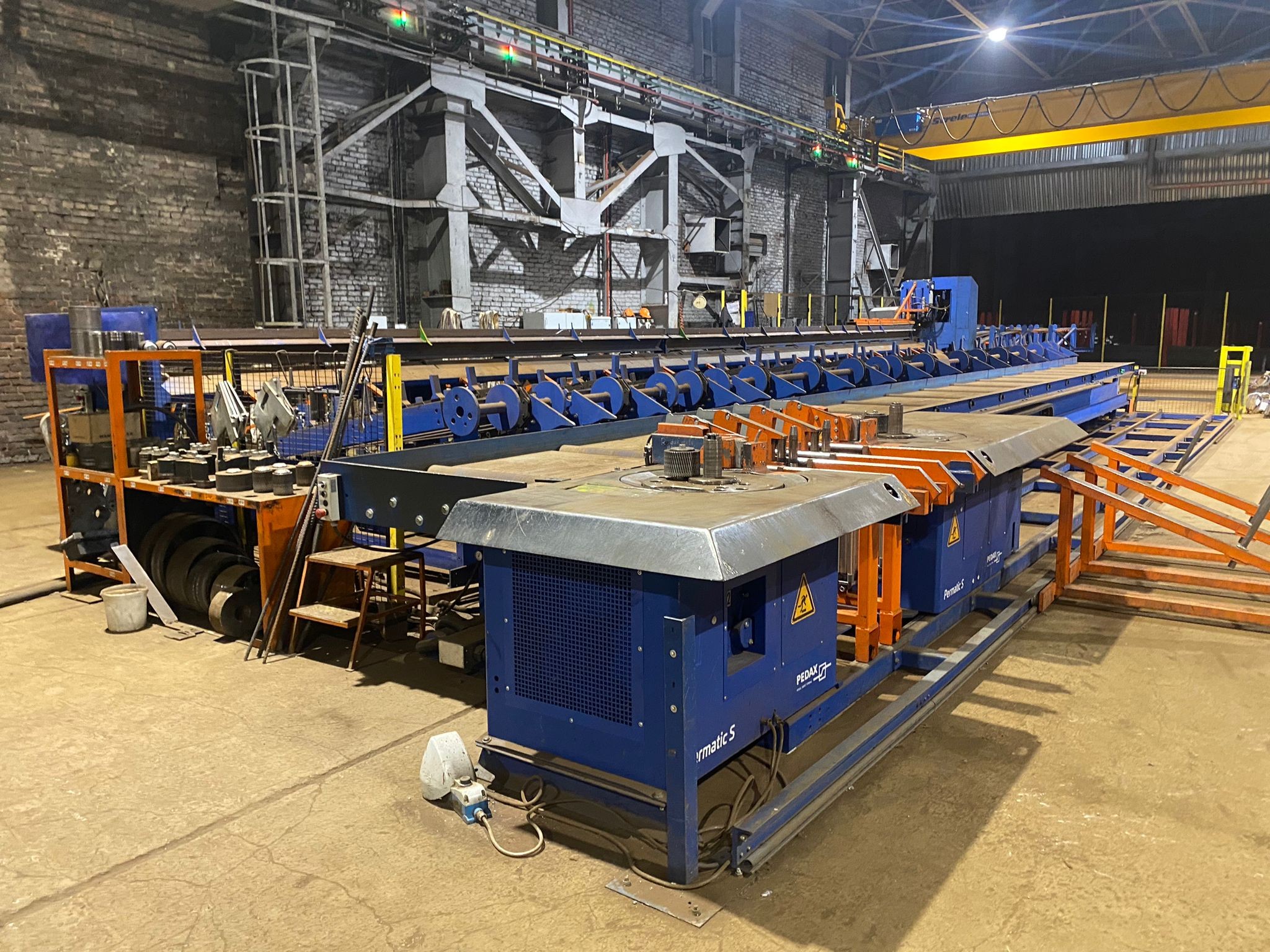

    Pedax Combiline GX, from 2021, 14 m long stock of bars, collecting pockets, excellent working condition. 6168 working hours.

    Pedax Permatic 60S, 2021, 12 m, chain feeder, excellent working condition. 1772 working hours



  • Technical specifications

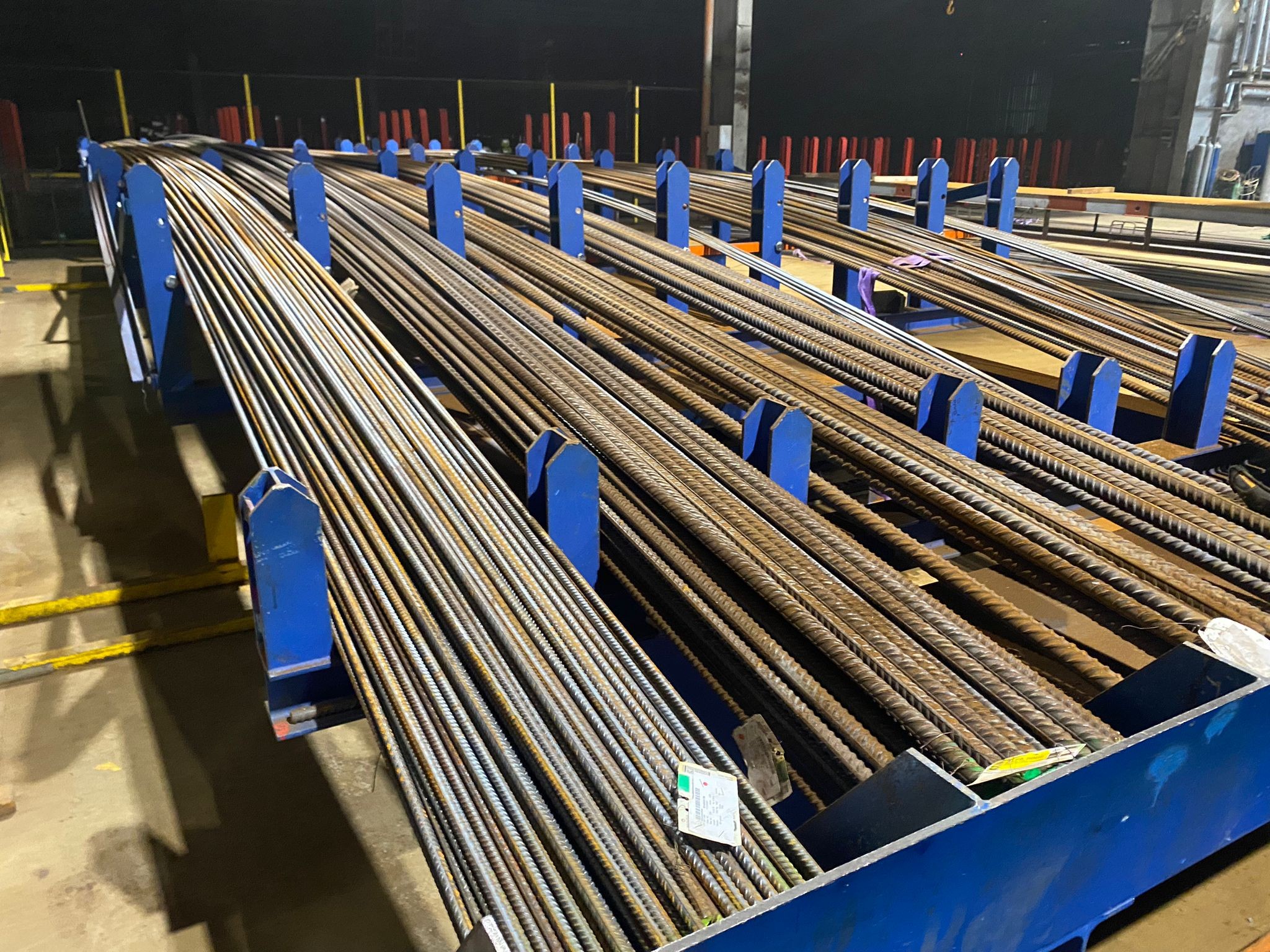

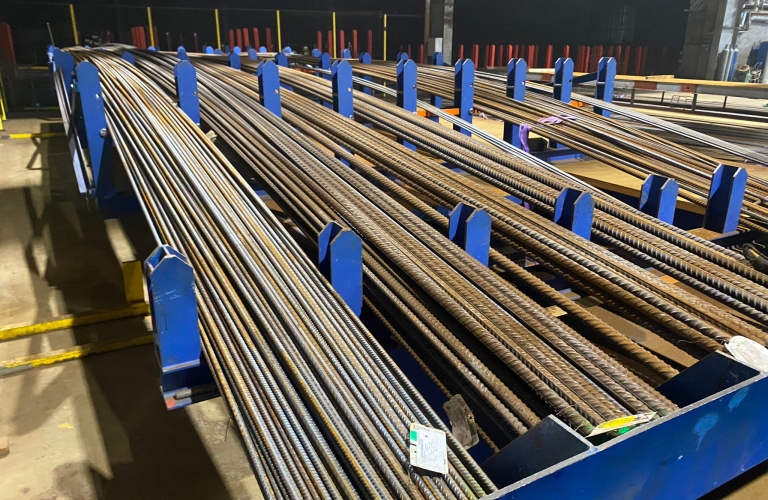

    Mobile, rail mounted bar storage facility
    Number of compartments* 5,7,10
    Bar length*m12

    Pull-in feed, measuring and cutting system

    Measuring length*m12
    Pull-in speedm/s2,5
    Width of the pull-in beltmm140
    Rated shearing capacitykN1150
    Blade width mm150
    Distribution channel with kick-off to both sidesm12
    Positioning track with two positioning stops and one fixed stop. Lengthm12

    4-unit collecting pockets with electro-pneumatic gates:
    Lengthm12
    Number of stands 16

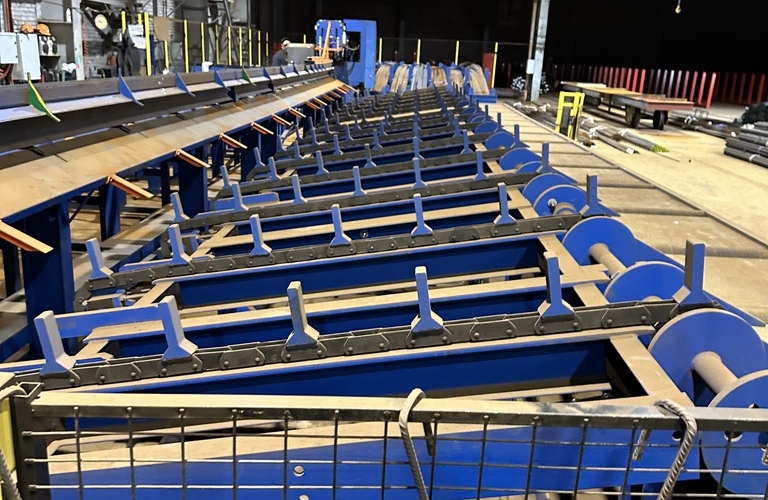

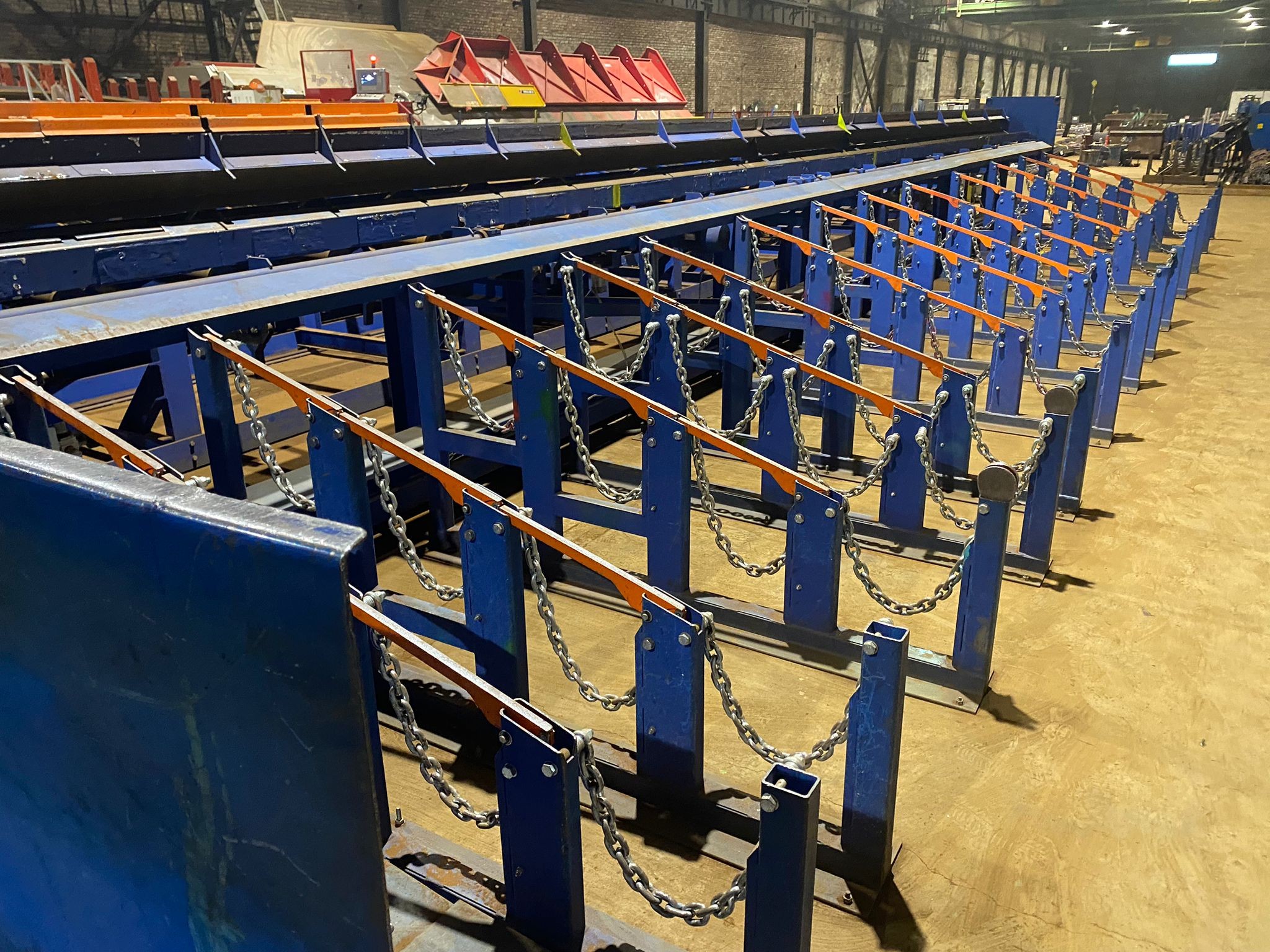

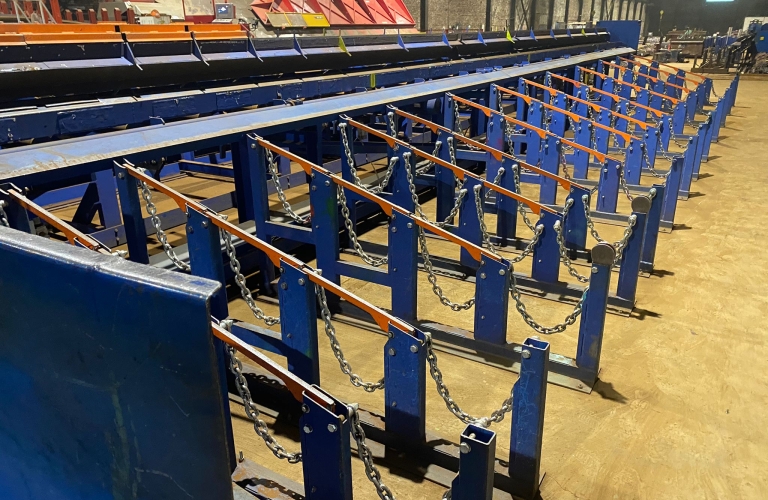

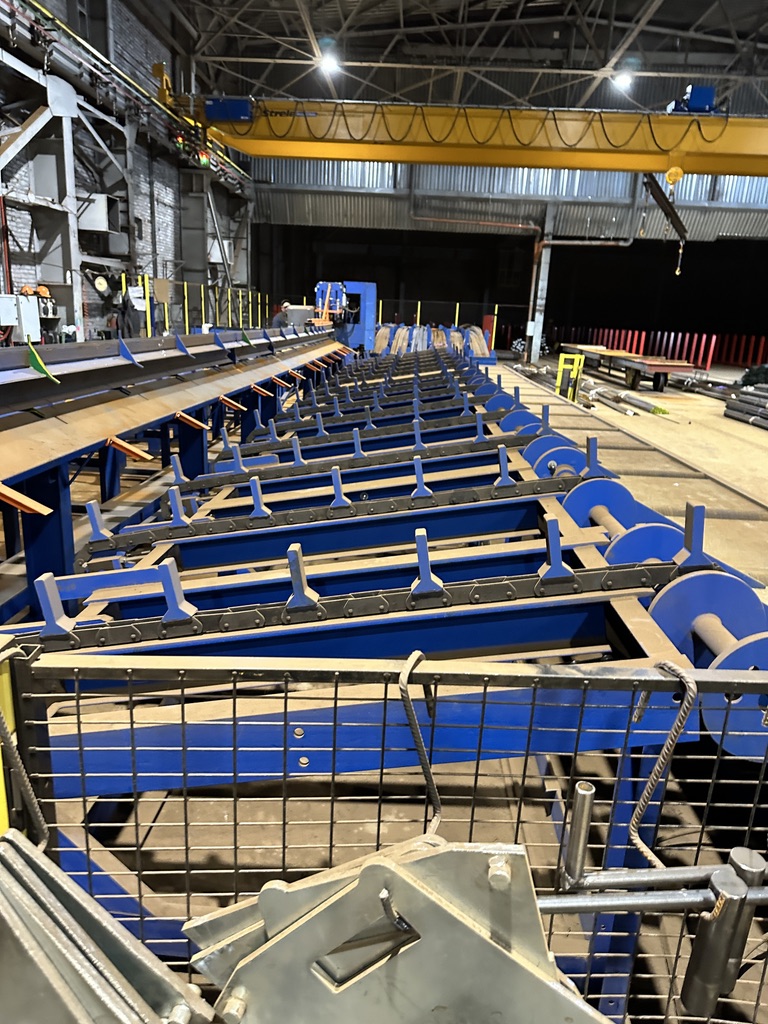

    Chain driven cross conveyor transfer:
    Lengthm12
    Number of compartments 8
    Load capacity per compartmentkg800

    Permatic double bending line:
    Overall lengthm14
    Conveyor lengthm12
    Max. distance centrem11
    Min. distance centrem1,35



    Shearing and bending capacities (850N/mm²:

    Bar Ø 50**403632282520161412108
    Number of bars that can be cut simultaneously122344678101214


    * Other lengths and numbers of bins available upon request.
    ** Option, only available for deliveries ex works

     All capacities are based on a material tensile strength of 850 N/mm².

  • Production year:
    2021
